High-Speed Data (H-MTD) Switch
Test with high efficiency and speed
High-Speed Data (H-MTD) Switch
Introducing the HDS: Empowering Multi-DUT Testing

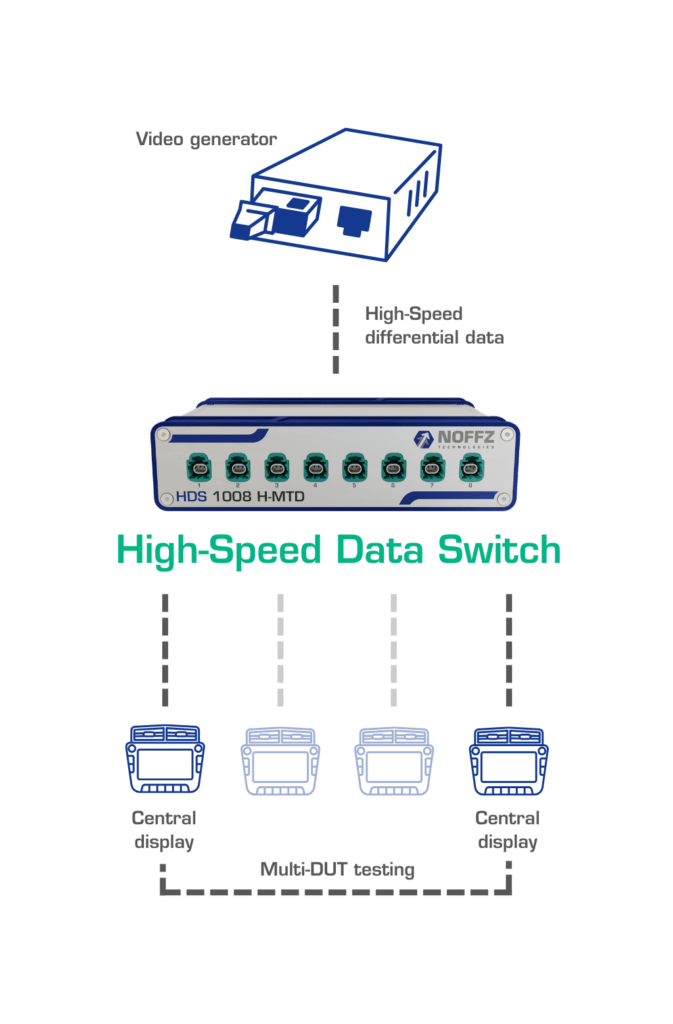

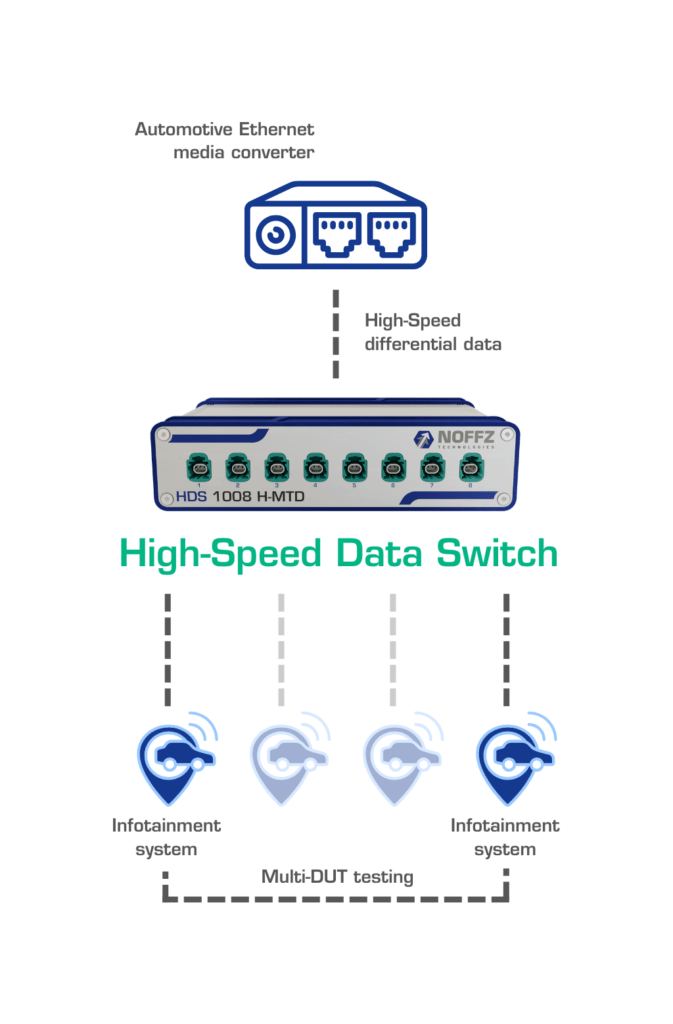

Enabling a centralized data source/sink mechanism, HDS simplifies product testing equipped with Automotive Ethernet, Automotive SerDes, PCI Express (PCIe), Video, USB, and other high-speed lines. Instead of using several sinks (ie.: video frame grabbers) in your test system, you can connect multiple DUTs (ie.: automotive cameras) to our high-speed switch and share a single frame grabber. Use High-Speed Data (H-MTD) Switch to optimize costs and real estate in your test racks. The HDS sets new standards for efficiency in modern testing procedures.
Developed for efficient high-speed product testing
- Automotive Video: FPD-Link III, FPD-Link IV, GMSL2, GMSL3, APIX, GVIF, ASA Motion Link
- Automotive Ethernet: 100BASE-T1, 1000BASE-T1
- USB 1.0/2.0/3.x
- PCIe
- HDBase-T
- MIPI A-PHY
THIS IS WHAT DISTINGUISHES OUR PRODUCT
Features and Specifications
- 8-Port differential high-speed switch

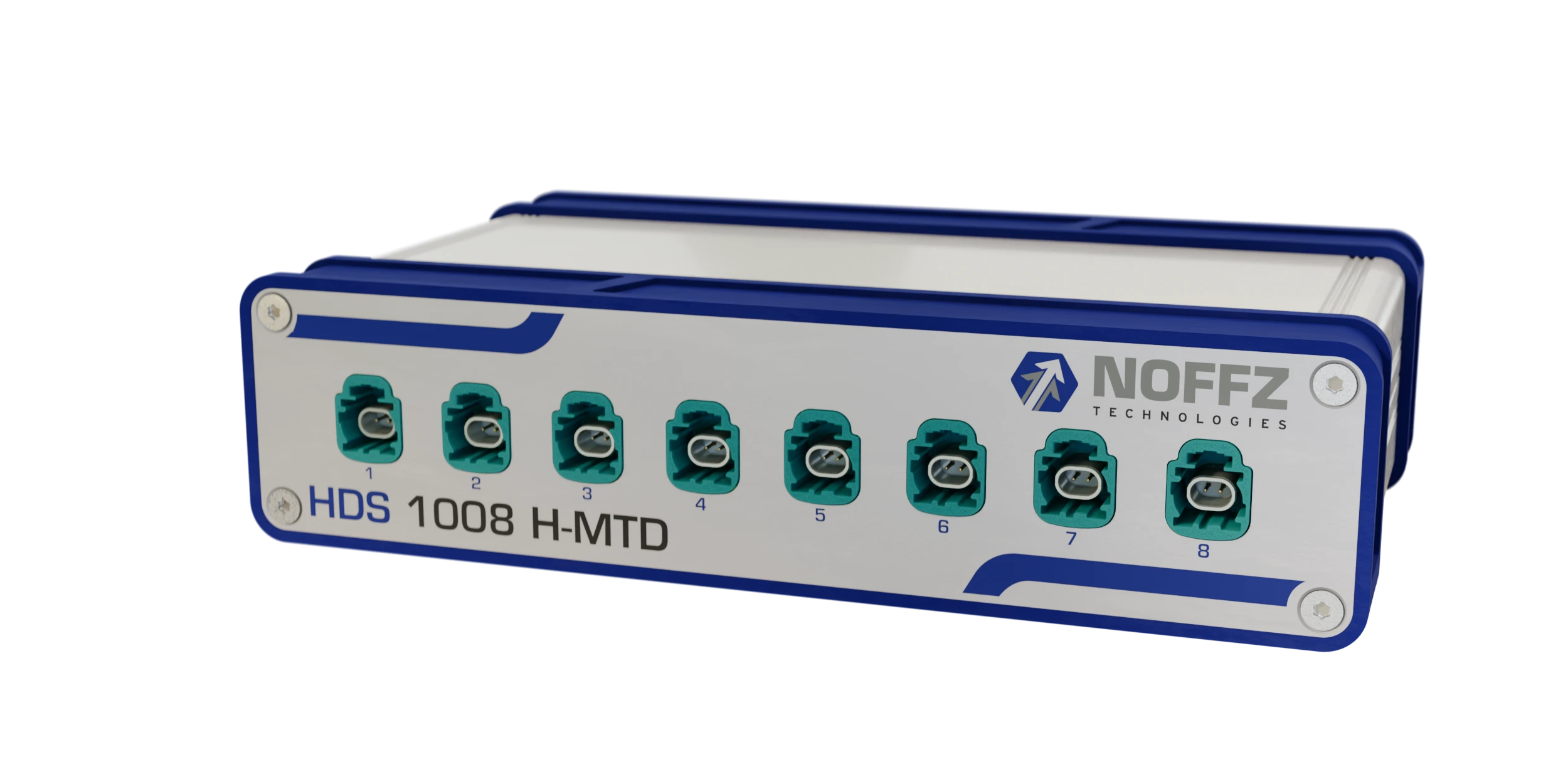

- Different Automotive connectors like HSD, H-MTD and MATEnet
- Supports data streams of up to 14 Gbps
- Supports bidirectional data stream with backchannel communication
- Control via Ethernet
- API for .NET, LabVIEW and TestStand are available
- Easy access through web GUI
- Additional parts like 19“ 1U mounting panel and mounting brackets available

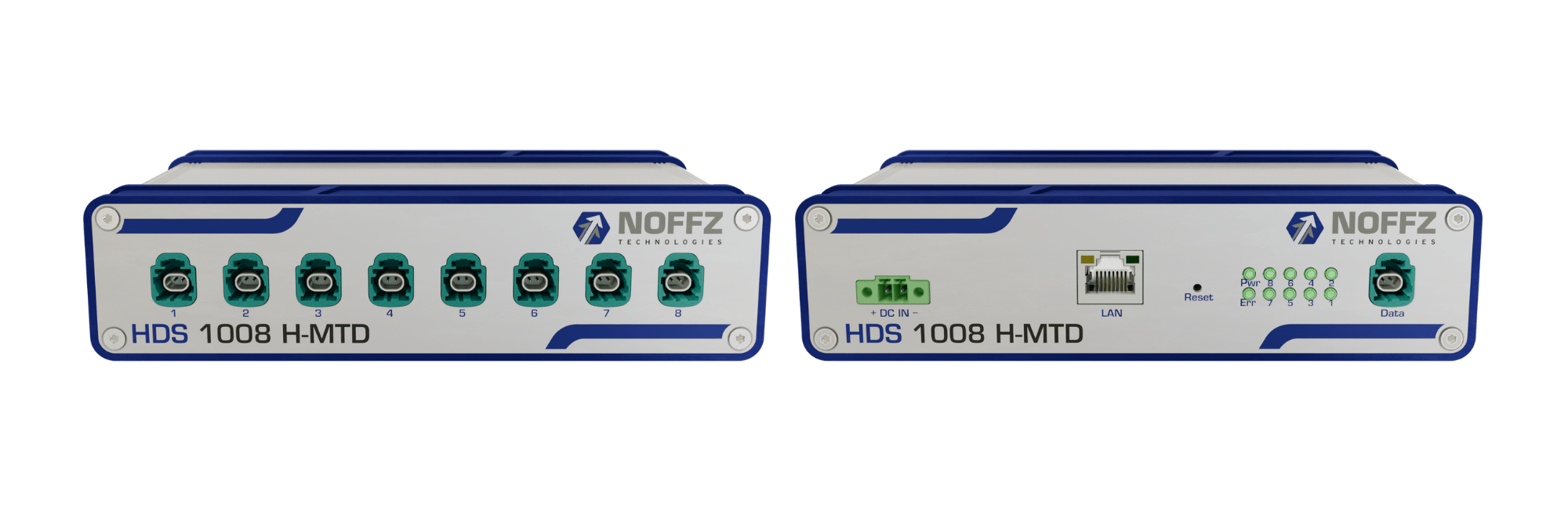

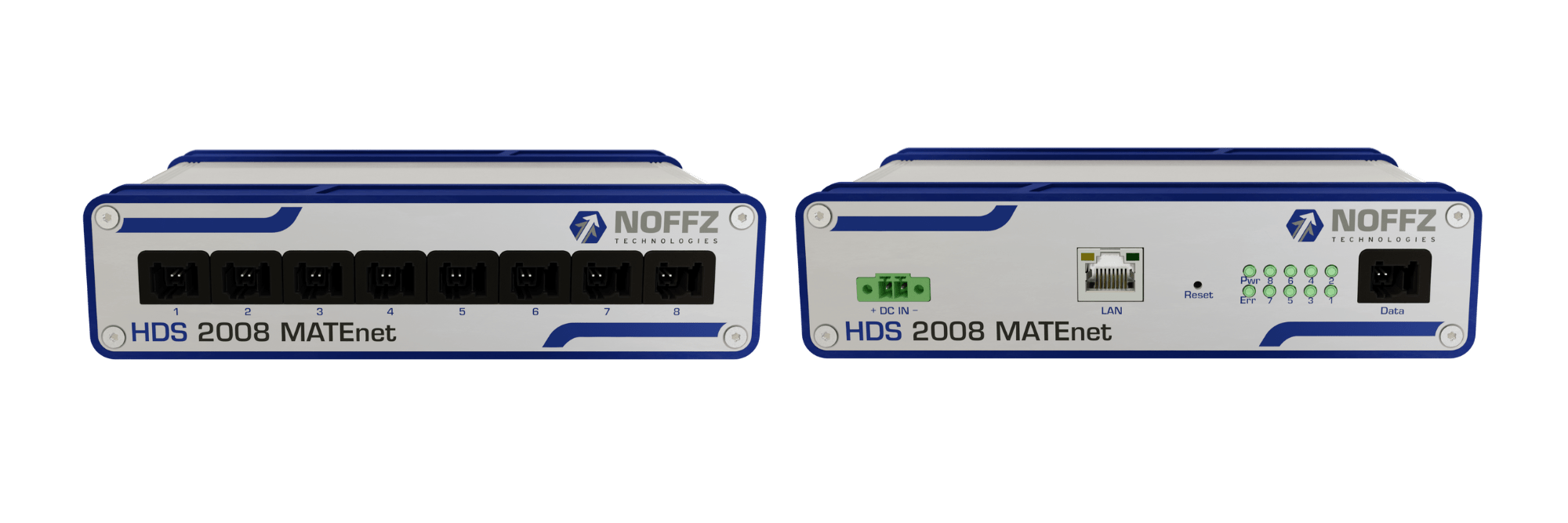

The connections of the HDS on the front and rear
HDS 1004 DP
Powerful DisplayPort Multiplexing with NOFFZ HDS 1004 DP

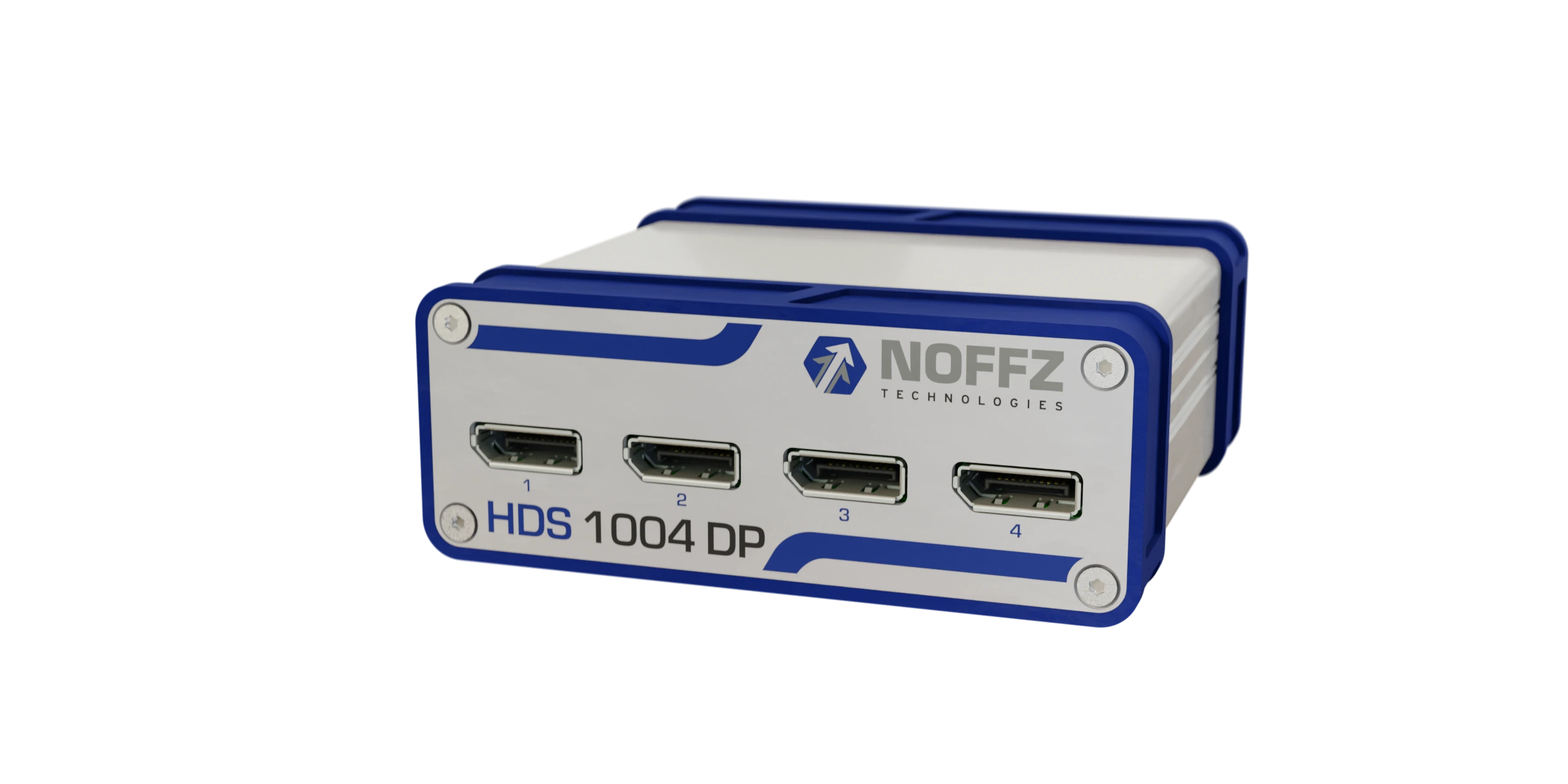

The NOFFZ HDS 1004 DP is a high-speed, bidirectional DisplayPort multiplexer designed for demanding test and automation environments. Engineered for low latency and minimal signal loss, it features advanced DP signal conditioning and passive switching for optimal performance.
With full support for NI TestStand, LabVIEW 64-bit, .NET, HTTP commands, and a web interface, integration is seamless and flexible. Its Ethernet (RJ45, 100Mbit TCP/IP) interface ensures reliable connectivity.
Ideal for use in automated test systems, the HDS 1004 DP enables cost-effective switching of DP sources and sinks—especially in conjunction with NOFFZ automotive video devices.
Advantages
Cost Efficiency through Resource Sharing
- One frame grabber or test component can be used for multiple DUTs – reducing hardware, space, and overall costs.
Simplified Multi-DUT Testing
- Connect several devices to a single test instrument via the switch – enabling streamlined and scalable test setups.
Universal Interface Support
- From Automotive Video and Ethernet to USB, PCIe, and MIPI: the HDS supports nearly all common high-speed standards.
Maximum Performance and Signal Quality
- With data rates up to 14 Gbps and bidirectional communication, even the most demanding test requirements are met – reliably and fast.
Easy System Integration
- Ethernet control, web-based GUI, and APIs (LabVIEW, TestStand, .NET) ensure easy integration into existing test environments.
Flexible, Compact Design
- Optional 19″ rack-mount solutions make the HDS space-saving and adaptable for any test setup.
THE KEY TO SUCCESS
Test Concepts with the HDS Versions
INTERACTIVE CONFIGURATION AND SIMULATION
Software for the High Speed Data Switch
Our software for configuring and monitoring the test process

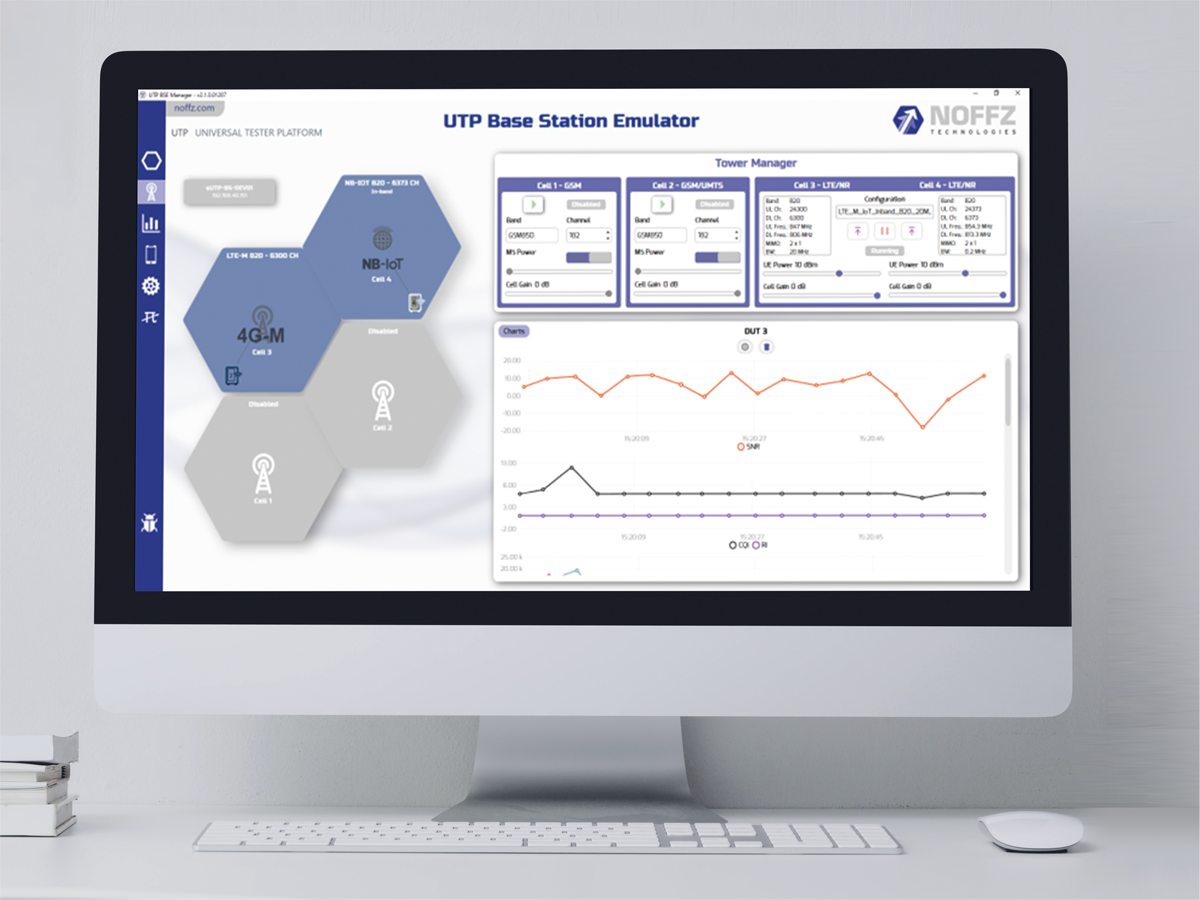

Screenshot of our software for configuring and simulating mobile cells and monitoring DUTs
IN ACTION
First steps with the Base Station Emulator
Practical implementation of typical test cases

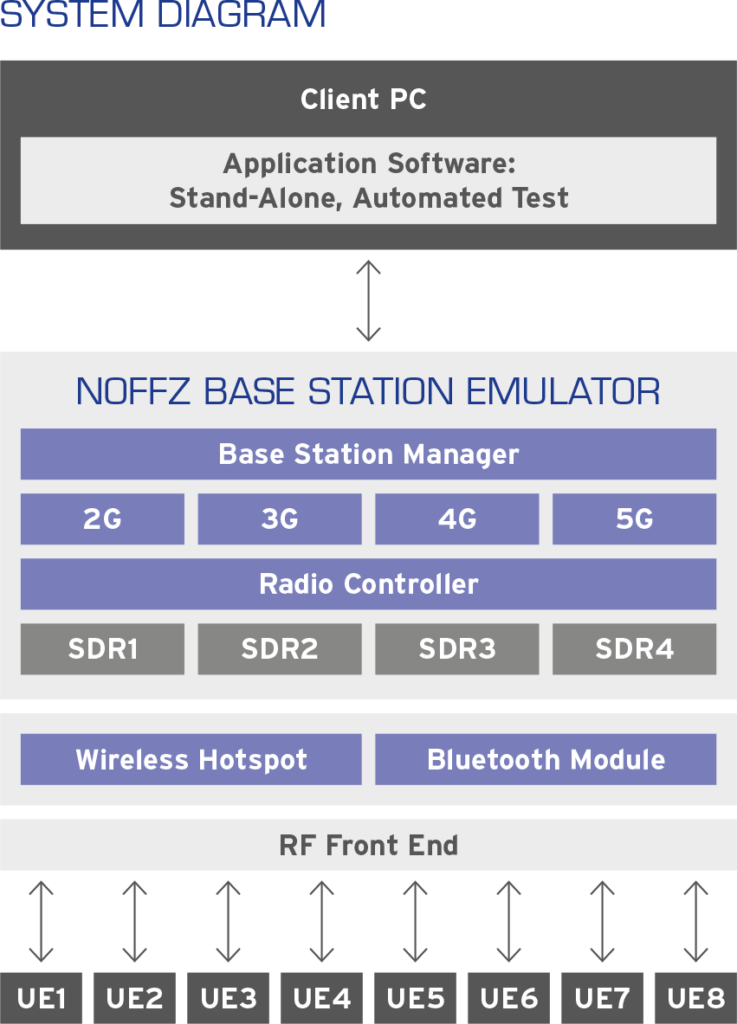

The Base Station Emulator was developed for signaling tests in validation and production. The video series demonstrates typical scenarios: 1. Establishing a cellular connection, 2. Data transmission in 5G network, 3. Calls over VoIP, 4. Hand-over between mobile cells.
FOR YOUR SMART PRODUCTION
Automated UTP 6010 for Telematic Control Unit
Robot-controlled loading and unloading of the NOFFZ HF chamber
In this video, the control of the integrated HF chamber is automated with the help of a collaborating robot arm. It handles the opening and closing of the drawer as well as the insertion and removal of the Telematic Control Unit.
